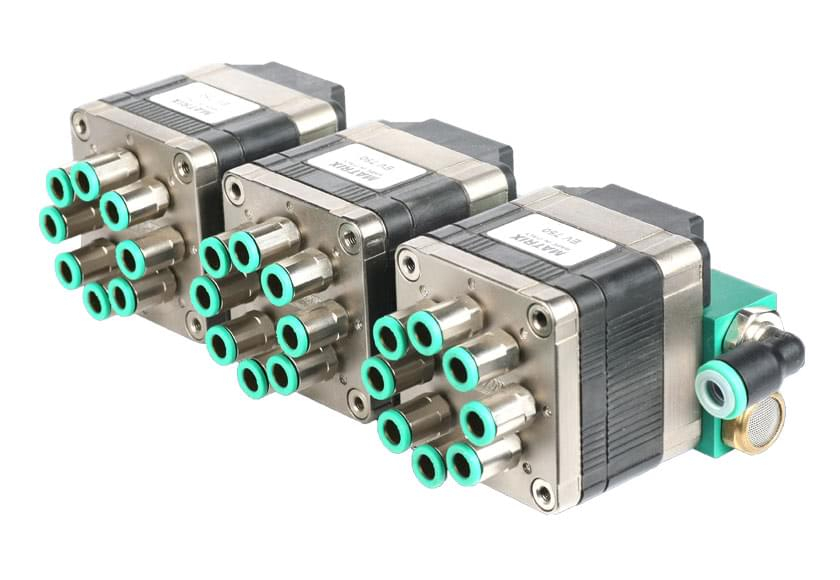

The Pneumatic Solenoid 750 Series encloses 2/2, 3/2, 3/3 or 5/2-way valves in a single body in NC or NO configuration. The Series modularity allows to have at disposal a single outlet or 2, 4, 8 independent outlets. All innovations offered by Matrix technology are present.
Response times are of millisecond range, while operation life is over 500 million cycles. The Series includes the Vacuum versions designed for uses with vacuum technique. Due to the facility to be speed-up controlled, dynamic characteristics are even more improved: standard solenoid valves equipped with 24 VDC control present response times lower than 5 ms in opening and 2 ms in closing, with a maximum operation frequency 200 Hz. On the contrary, solenoid valves equipped with speed-up control present a response time both in opening and closing lower than 2 ms, with a maximum operation frequency 300 Hz.
Besides high-speed characteristics, solenoid valves 750 Series offer flow rate value to 100 l/minute (ANR), with supply pressure from 0 to 8 bar.
For 750 Series, a lot of accessories are available, such as IP52 or IP65 connectors, manifolds with different positions and speed-up driver boards.

• Compact dimension
• High duct diameter and flow rate
• Short response times
• Insensitivity to frequency work and to vibrations
• Low absorbed power
• Precision, repetitiveness and flexibility
• Long operating life

• Process and precision instrumentation
• Pressure and flow rate control devices
• Positioning systems
• Pilot systems
• Selection systems
• Metering systems
• Biomedical and measure sector
• Industrial automation

• Body in PPS
• Flanges in Al (stainless steel on request)
• Seals in NBR (HNBR on request)

2/2, 3/2, 3/3 or 5/2 Function in NC or NO

Single valve and manifold version

• Flowrate              50-700 Nl./min.
• Pressure range    0-8 bar or vacuum 10^-5 Torr
• IP Rating             IP52 or IP65
• Response time     from 2 ms
• Tension               12 VDC; 24 VDC; Speed-Up!
• Life time              >500 million cycles
• Measurements     55x55x48 mm
• Weight                from 350 g
