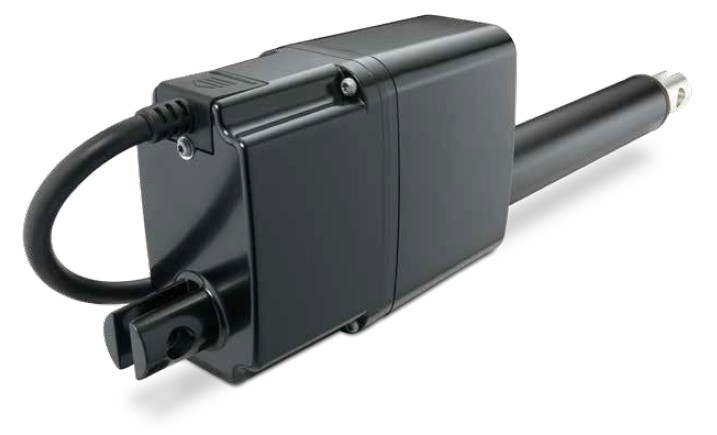

Designed as a smaller sibling to the Electrak HD actuator, these smart electric linear actuators pack a big punch relative to their compact size and dutifully perform in the harshest environments without the need for service or maintenance. Onboard controls open the door to a wide range of possibilities, including CAN bus options and low-level switching with or without position feedback.

Electrak MD Feature Highlights:

  • Onboard electronics
  • Built-in J1939 CAN bus
  • Overload protection
  • Electronic trip point calibration
  • End-of-stroke, voltage, current monitoring
  • Standard anti-rotation actuation
  • CE, RoHS, REACH (CU) compliant
  • Dynamic motor braking
  • Self-locking lead nut
  • Temperature monitoring
  • Temperature compensation
  • Flying lead cables

Electrak MD Electronics Options:

  • EXX: Monitoring System (EMS) only
  • EXP: EXX+Analog Position Output
  • LXX: EXX+Low Level Signal Switching
  • LLX: EXX+LXX+End of Stroke Output
  • LXP: EXX+LXX+Analog Position Output
  • CNO: Can Bus J1939 Control + Open Loop Speed Control
  • XXX = Internal End-of-Stroke Limit Switches
  • XXP = XXX + Analog (Potentiometer) Position Output
  • LLP = LLX + Analog (Potentiometer) Position Output

Electrak MD Applications:

  • Automated Guided Vehicles
  • Logistics Trains • Workstations
  • Packaging Machines
  • Agricultural Vehicles
  • Agricultural Vehicles
  • Gardening and Landscaping Vehicles
  • Seeding, Watering and Fertilizing Machines
